Features：
Rotary Table Design: Ensures uniform surface treatment across large parts.
High Efficiency Cleaning: Removes contaminants effectively with blast media.
Industrial Grade: Suitable for heavy-duty manufacturing environments.
Automated Operation: Reduces labor costs and increases productivity.
Dust Collection System: Minimizes environmental impact with efficient filtration.

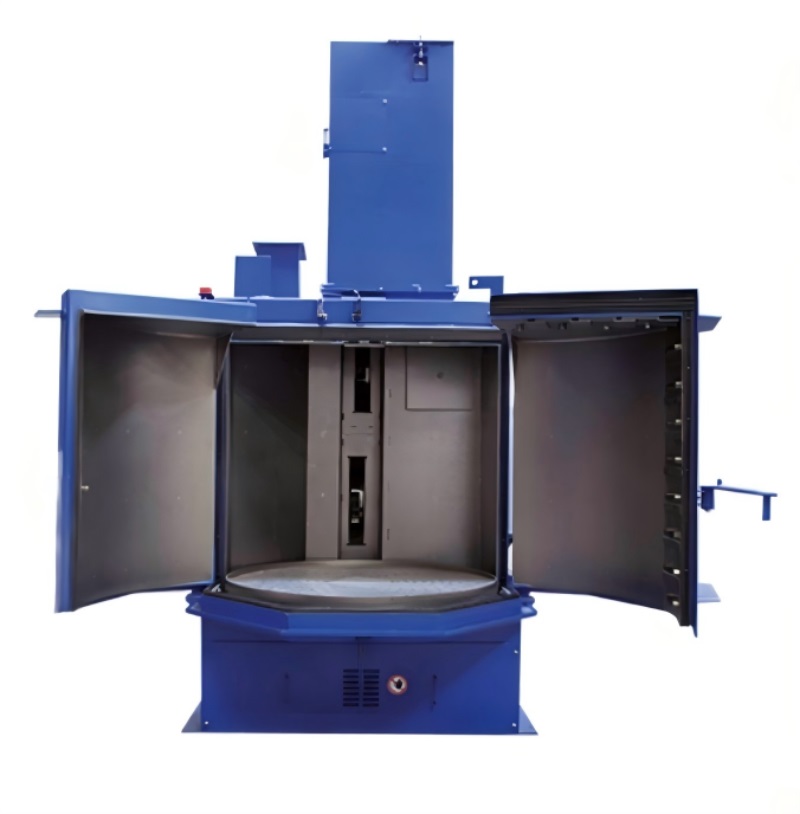

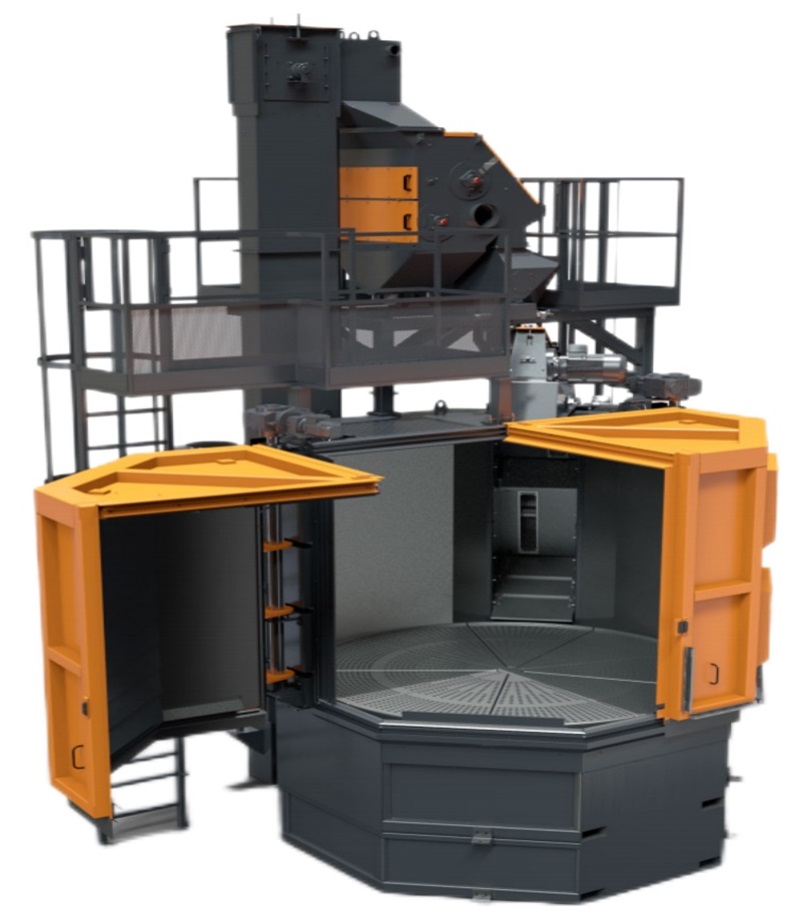

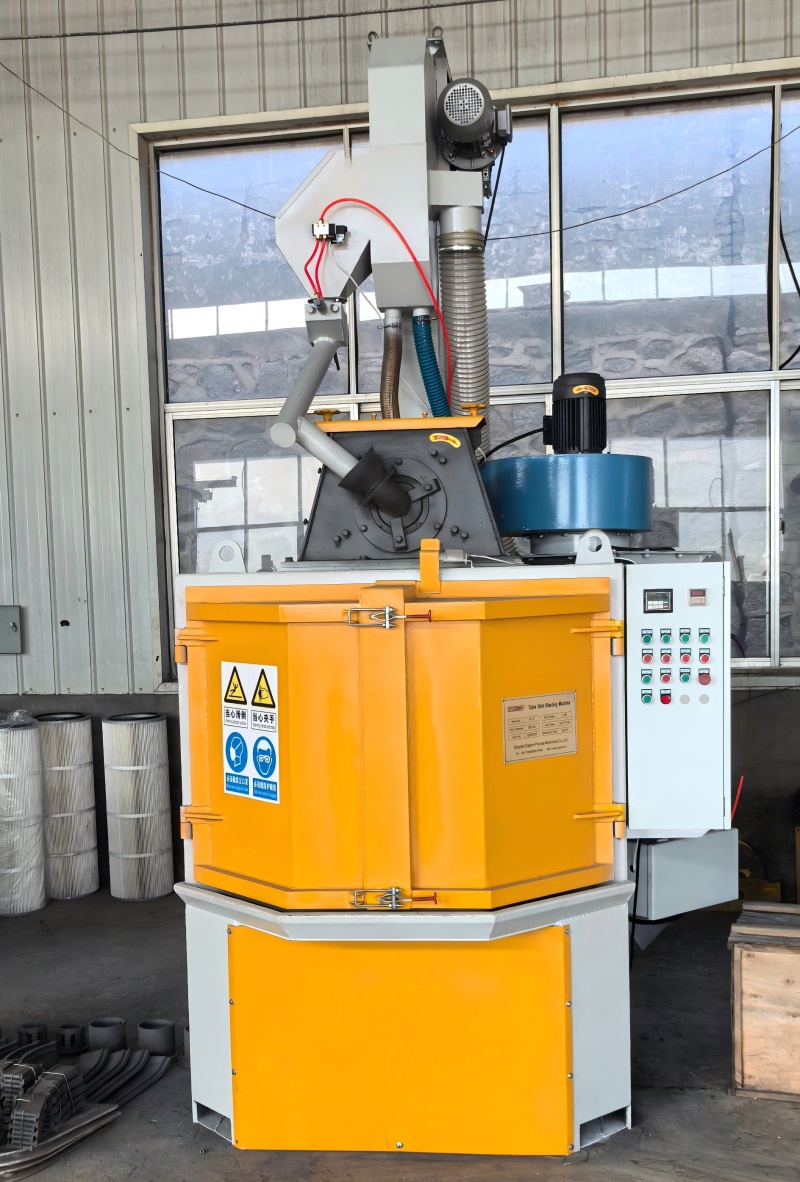

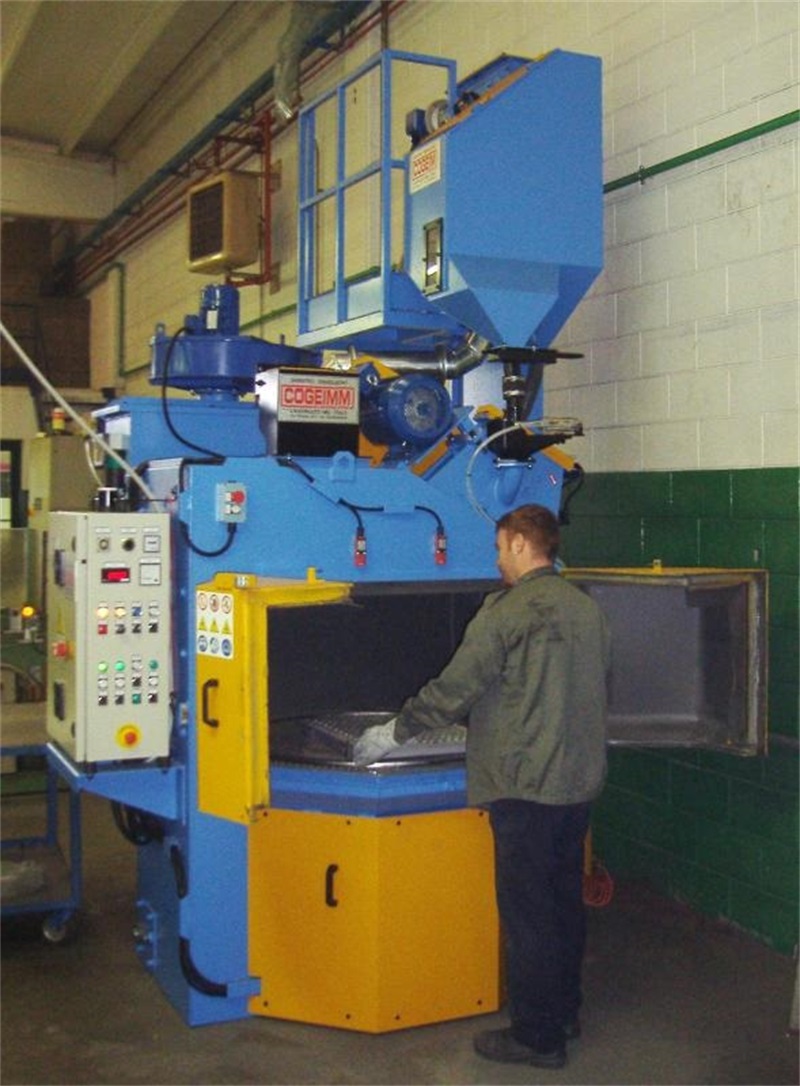

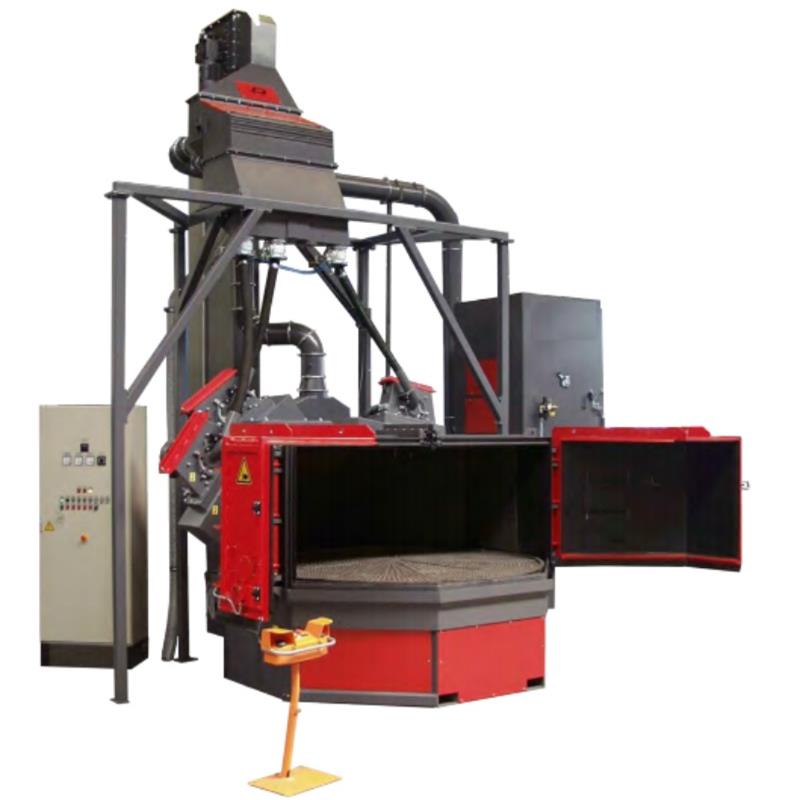

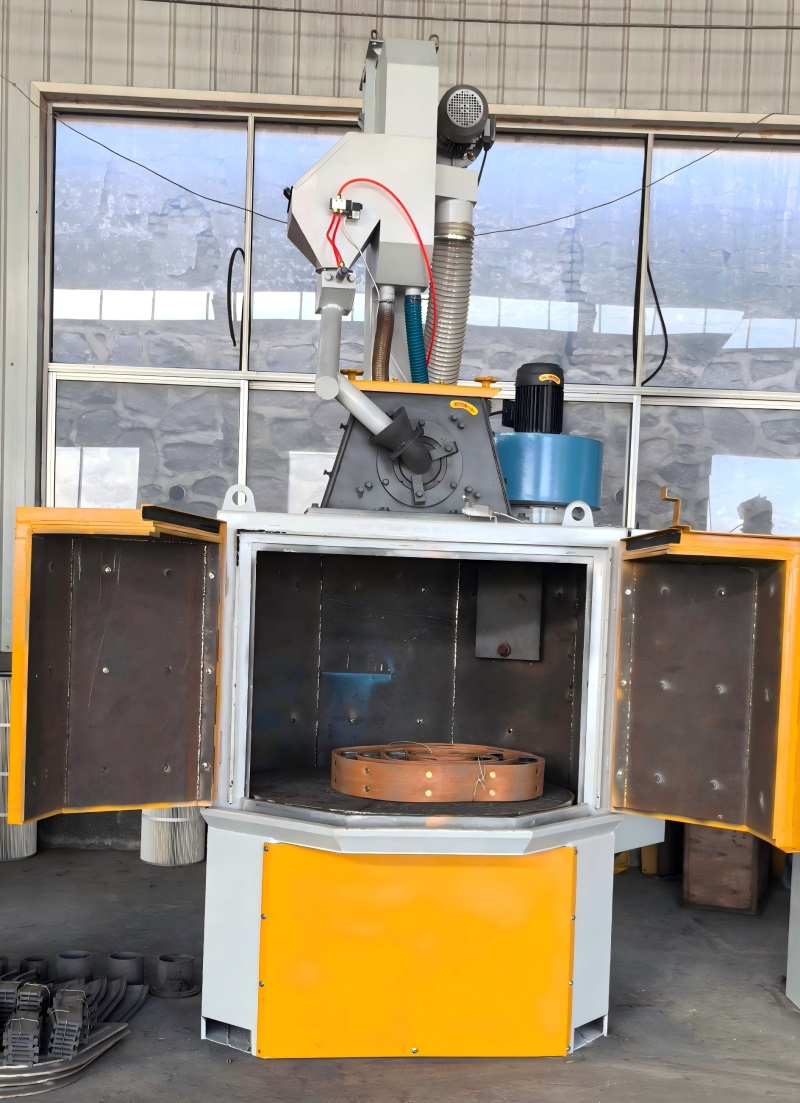

The rotary table shot blasting machine uses a rotary table as the workpiece carrying device. According to the diameter of the rotary table, it can be divided into φ1200 mm, φ1600 mm, φ1800 mm, φ2500 mm, etc. Some of these cleaning machines are equipped with one shot blasting machine, while others are equipped with two or more. Some operate continuously, while others operate intermittently, depending on the specific requirements. The working principle is as follows: Place the workpiece on the rotary table (with a certain distance between the workpieces to avoid contact and collision), and the rotary table brings the workpiece into the blasting area for shot blasting cleaning. When it reaches the unloading position, the workpiece can be removed. Therefore, this type is most suitable for workpieces that do not need to be cleaned on one side; otherwise, the workpiece should be flipped over for another round of cleaning. However, the rotary table hook-type shot blasting machine from Zhongshan Quancheng not only has a rotary table but also a hook, which has a rotating function. Therefore, it is suitable for surface treatment of various workpieces with high requirements.
| Model | Q3512 | Q3525 | Q365C | Q3610 | Q3620 |
|---|---|---|---|---|---|
| Workpieces Size (mm) | 600*250*250 | 1000*500*250 | 2500*1300*250 | 2500*1500*280 | 4000*3000*700 |
| Max. Workpiece (kg) | 400 | 1000 | 5000 | 10000 | 10000 |
| Shots Flow Rate (kg/min) | 200 | 2*250 | 2*250 | 4*250 | 4*250 |
| Elevator Lifting Capacity (t/h) | 15 | 30 | 40 | 60 | 75 |
| Separation Capacity (t/h) | 15 | 30 | 40 | 60 | 75 |
| Ventilation Capacity (m³/h) | 2400 | 6200 | 13200 | 24000 | 21000 |
| Power (Excluding Dedusting) (Kw) |
17.3 | 35.2 | 39.2 | 188.45 | 185.25 |
| Dimension (mm) | 1500*3450*3780 | 2200*3500*4300 | 9000*4200*9290 | 14900*5000*8700 | 16900*6540*10020 |
